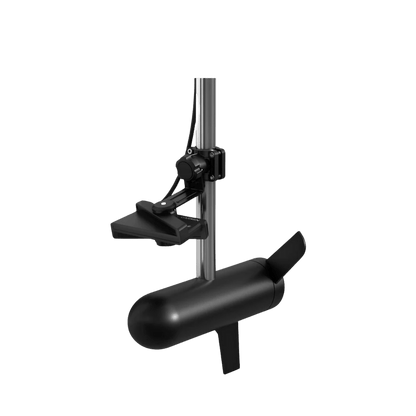

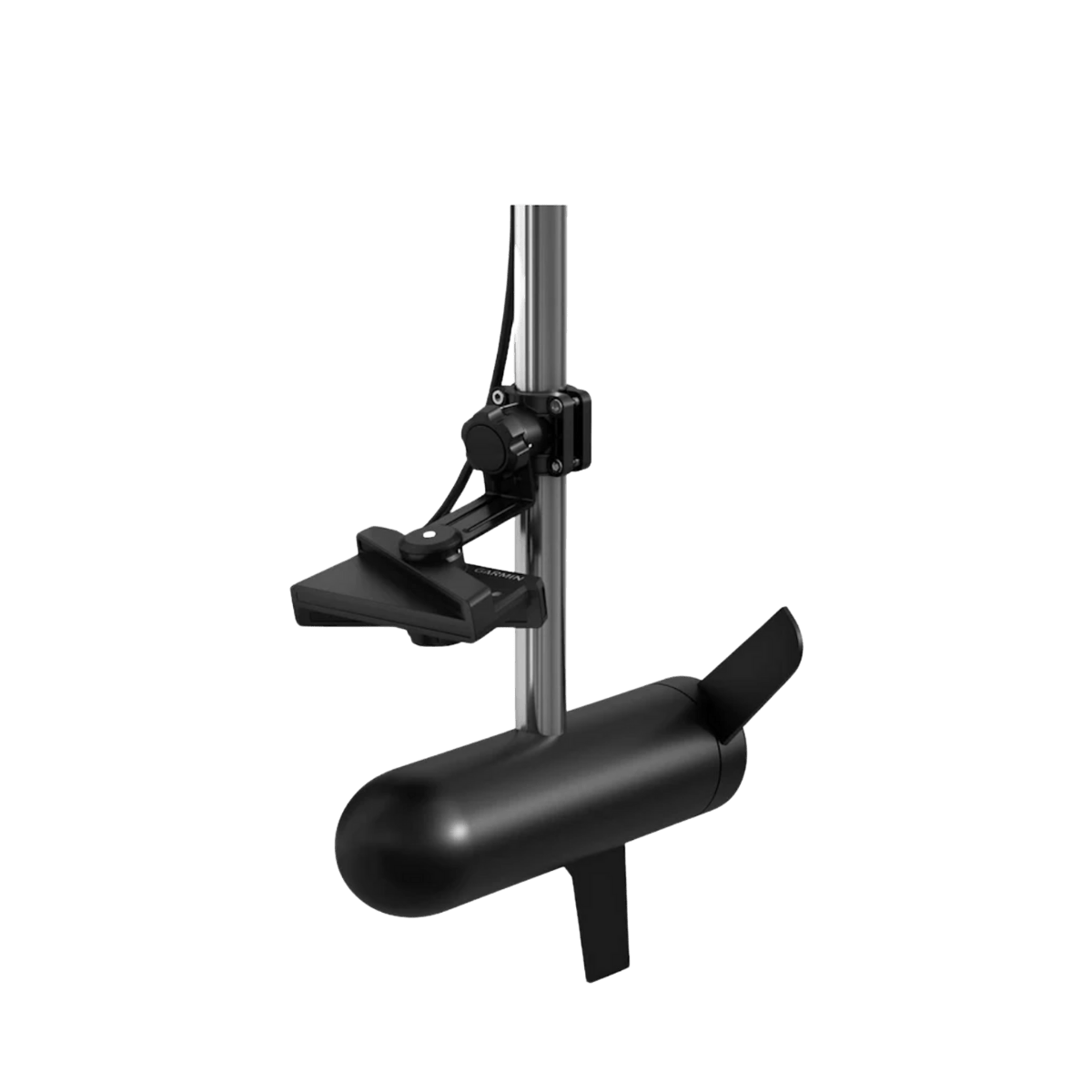

GARMIN LIVESCOPE™ PLUS LVS34

The LiveScope™ Plus System represents the latest advancement in LiveScope technology, delivering sharper images, enhanced resolution, reduced noise, and superior target separation.

See underwater details more clearly thanks to improved transducer sensitivity, enhanced screen clarity, and optimized target distinction. Scan your surroundings with fewer sonar artifacts and more precise imaging.

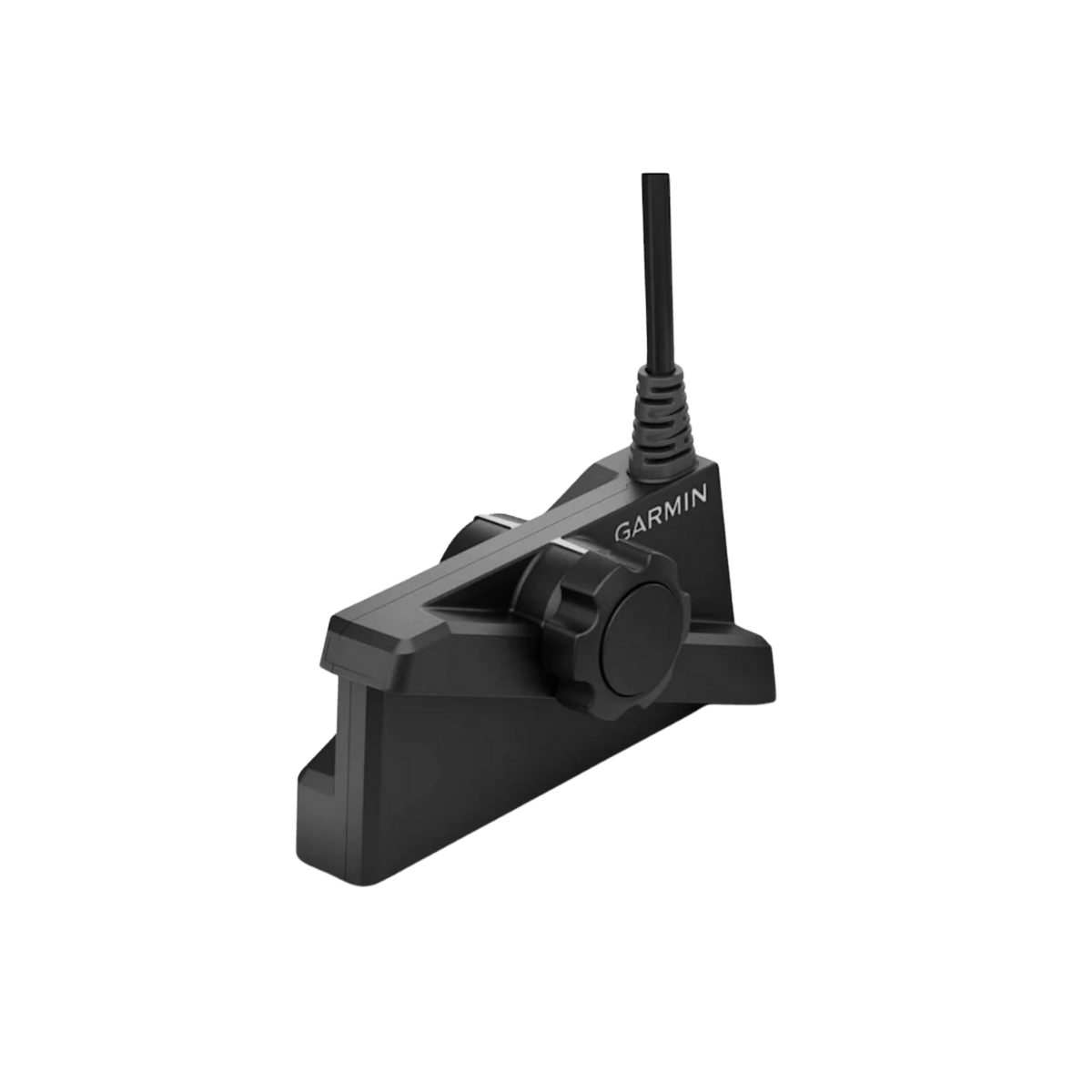

Upgrade your existing LiveScope System black box (GLS™ 10 sonar module) simply by adding the new LVS34 transducer. Enjoy maximum contrast and clarity with vivid color palettes, and take advantage of supported Forward, Down, and Perspective modes — including the necessary mount for overhead scanning.

General Specifications

• Transducer Beamwidth: 20° x 135°

• Cable Length: 20 ft

• Number of Pins: 21

• Dimensions: 6.4" x 3.1" x 1.9" (16.2 x 7.9 x 4.8 cm)

• Weight: 2.25 lbs (1.02 kg)

• Operating Temperature: 0°C to 40°C

Electrical Features

• Power Input: 10–32 V

• Power Usage: 21 W typical, 58 W max

• Fuse: 7.5 A

• Compass-Safe Distance: 4" (0.1 m)

Sonar Features

• Frequency: 530–1,100 kHz

• Transmit Power: 500 W

• Maximum Depth (Down & Forward): 200’ (61 m)

• Sonar Type: Live

• Target Separation @100': 14"

• Perspective Mode Mount: Included
